Application pattern: Proxy Consumer Driven Contracts

Proxy Consumer Driven Contracts simulate provider-side testing

When Continuous Delivery is applied to an estate of interdependent applications we want to release as frequently as possible to minimise batch size and lead times, and Consumer Driven Contracts is an effective build-time method of verifying consumer-provider interactions. However, Consumer Driven Contracts assumes the provider will readily share responsibility for conversation integrity with the consumer, and that can be difficult to accomplish if the provider has different practices and/or is a third-party organisation. How can Consumer Driven Contracts be adapted to an environment in which the provider cannot or will not engage in joint risk mitigation?

For example, consider an organisation in which the applications Consumer A and Consumer B are dependent upon a customer details capability offered by a third-party Provider application. The Provider Contract is communicated by the third-party organisation as an API document, and it is used by Consumer A and Consumer B to consume name/address and name/address/email respectively. Consumer Contracts are made available to the provider for testing, but as the third-party organisation has more lucrative customers and a slower release cycle it is is unwilling to engage in Consumer Driven Contracts.

Consumer Driven Contracts - Consumer Contracts

In this situation a new Provider release could cause a runtime communications failure with Consumer A and/or Consumer B with little or no warning. It is likely that some form of consumer-side integration testing will have to be adopted as a risk reduction strategy, unless the provider role within Consumer Driven Contracts can be simulated.

In Proxy Consumer Driven Contracts a provider proxy is created that assumes responsibility for testing the Consumer Driven Contracts as if it was the provider itself. Consumer A and Consumer B supply their Consumer Contracts to a Provider Proxy, which acts in a provider role.

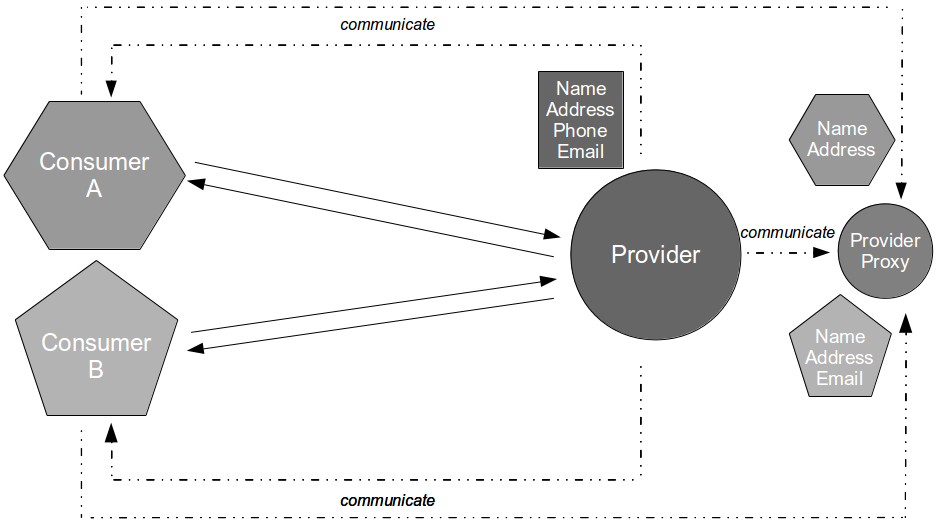

Consumer Driven Contracts - Proxy Consumer Driven Contracts

When a new Provider release is announced by the third-party organisation the updated API document is stored within the Provider Proxy source tree. This triggers a Provider Proxy commit build that will transform the human-readable Provider Contract into a machine-readable equivalent, and use it to validate the Consumer Driven Contracts previously supplied by Consumer A and Consumer B. This means incompatibilities can be detected merely seconds after new Provider documentation is supplied by the third-party organisation.

Proxy Consumer Driven Contracts incur a greater maintenance cost than Consumer Driven Contracts, but if the provider cannot or will not become involved in risk reduction then a simulation of provider-side unit testing should be preferable to a lengthy period of consumer-side integration testing.

Application pattern: Consumer Driven Contracts

Consumer Driven Contracts enable independent, interdependent releases

When applying Continuous Delivery to an application estate, our ability to rapidly release individual applications is constrained by inter-application dependencies. We want to release applications independently in order to minimise batch size and cycle time, but the traditional risk reduction methods associated with inter-application dependencies compromise lead times and are fundamentally incompatible with Continuous Delivery. How can we enable the independent evolution of interdependent applications with minimal risk?

For example, consider an estate initially comprised of two independently versioned applications – a Provider application that offers name/address/phone details, and a Consumer A application that uses name/address details.

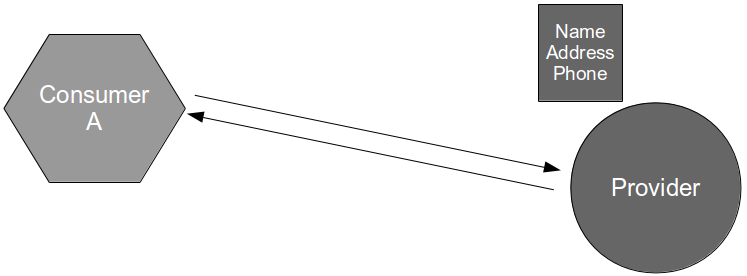

Consumer Driven Contracts - Consumer and Provider Contract

In this scenario, the interdependent relationship between Provider and Consumer A means an independent release of either application will increase the probability of a runtime communications failure between the applications. As Consumer A has little knowledge of the Provider a new Consumer A artifact might unintentionally alter its usage of the Provider API, and conversely as the Provider has zero knowledge of Consumer A a new Provider artifact might break API compatibility for an unchanged version of Consumer A.

The fear of change and uncertainty associated with this inter-application dependency is exacerbated when another consumer with different requirements is added to the application estate, such as a Consumer B application requesting name/address/email details from the Provider.

Consumer Driven Contracts - Consumers and Provider Contract

The introduction of Consumer B adds another inter-application dependency to our estate and increases the complexity of our independent release strategy. We must be able to release a new Provider artifact capable of servicing Consumer B without endangering the integrity of existing API conversations with Consumer A, but this is difficult when the Provider is unaware of Consumer A and Consumer B requirements. To solve this problem a number of risk reduction methods may be proposed, each of which comes at a significant cost:

  • Coupled releases. Releasing new versions of the Provider, Consumer A, and Consumer B simultaneously is a direct impediment to Continuous Delivery, with increased holding costs and transactions costs resulting in artificially inflated batch sizes and lengthy lead times
  • End-to-end testing. An end-to-end test suite covering all possible API interactions would be costly to maintain and a drain upon lead times, hence Jez Humble arguing it “delays feedback on the effect of the change on the system as a whole” and JB Rainsberger stating “integrated tests are a scam
  • Multiple Producer API operations. This shares the cost of change between the Provider and Consumer B without impacting Consumer A, but there is an increase in Provider application complexity and there is no incentive for Consumer A to migrate to the same service as Consumer B

Given that all of the above methods will increase the cost of change and cause the evolutionary design of our application estate to stagnate, we need a more adaptive solution that will favour Build Quality In over Risk Management Theatre. We can reduce the consumer-side risk of each inter-application dependency by implementing the Tolerant Reader and API Examples patterns within Consumer A and Consumer B, but this solution is incomplete as it cannot address the provider-side risk – a new Provider artifact could still harm unchanged versions of Consumer A and/or Consumer B running in production.

Consumer Driven Contracts is a pattern originally described by Ian Robinson for Service-Oriented Architectures that has since proven applicable to any scenario in which evolving consumer-provider relationships need to be documented and continually verified. Characterised by Ian as an attempt to create a vocabulary for describing the roles of the participants in a loosely coupled relationship, the Consumer Driven Contracts pattern defines three related contract types:

  1. A Provider Contract is a description of a service offered by a provider
  2. A Consumer Contract is a description of the extent to which a consumer utilises a Provider Contract
  3. A Consumer Driven Contract is a description of how a provider satisfies an aggregate of Consumer Contracts

With Consumer Driven Contracts, the subset of information within the Provider Contract that a consumer is actually dependent upon forms a Consumer Contract that is communicated back to the Provider at build time. It is then the responsibility of the Provider to run a suite of unit tests in its commit build against each of its Consumer Contracts to ensure that no provider change could unexpectedly cause a communications failure at run time.

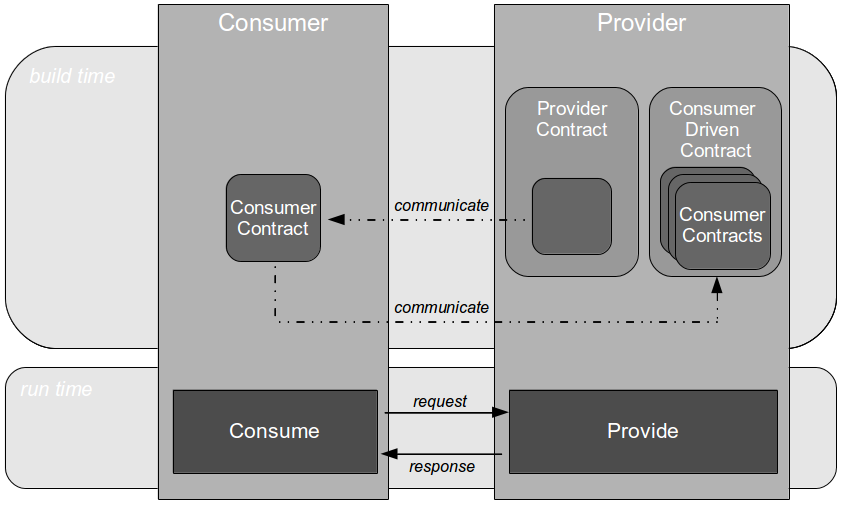

Consumer Driven Contracts - Contract Exchange

Consumer Driven Contracts are relatively cheap to implement, yet enormously powerful. As the Consumer Contracts supplied to the provider are executable specifications they provide an automated documentation mechanism that increases the visibility of existing inter-application relationships, and enable a testing strategy that favours the fast feedback of unit tests over the complexity and unreliability of end-to-end tests. Given that Consumer Driven Contracts enable us to visualise inter-application relationships and detect potentially harmful changes within seconds, Ian was not exaggerating when he stated that Consumer Driven Contracts “give us the fine-grained insight and rapid feedback we require to plan changes and assess their impact“.

If we apply the Consumer Driven Contracts vocabulary to our earlier example, it is apparent that our Provider application is offering a name/address/phone/email Provider Contract, with Consumer A encapsulating a private name/address Consumer Contract and Consumer B encapsulating a private name/address/email Consumer Contract.

Consumer Driven Contracts - Consumer Contracts

These Consumer Contracts should be elevated to first class concepts and persisted within the Provider application as a Consumer Driven Contract, so that the Provider is made aware of consumer expectations and can be independently released without fear of harming any inter-application dependencies.

Consumer Driven Contracts - Consumer Driven Contracts

Regardless of original intent, the Consumer Driven Contracts pattern is of immense value to Continuous Delivery and is an essential tool when we wish to independently release interdependent applications.

Application antipattern: Serialisation

Serialisation increases batch size and cycle time

When designing applications for Continuous Delivery, our goal is to grow an architecture that minimises batch size and facilitates a low cycle time. However, architectural decisions are often local optimisations that value efficiency over effectiveness and compromise our ability to rapidly release software, and a good example is the use of object serialisation and pseudo-serialisation between consumer/producer applications.

Object serialisation occurs when the producer implementation of an API is serialised across the wire and reused by the consumer application. This approach is promoted by binary web services such as Hessian.

Object Serialisation

Pseudo-serialisation occurs when the producer implementation of an abstraction encapsulating the API is reused by the consumer application. This approach often involves auto-generating code from a schema and is promoted by tools such as JAXB and WSDL Binding.

Pseudo Serialisation

Both object serialisation and pseudo-serialisation impede quality by creating a consumer/producer binary dependency that significantly increases the probability of runtime communication failures. When a consumer is dependent upon a producer implementation of an API, even a minor syntax change in the producer can cause runtime incompatibilities with the unchanged consumer. As observed by Ian Cartwright, serialising objects over the wire means “we’ve coupled our components together as tightly as if we’d just done RPC“.

A common solution to combat this increased risk of failure is to couple consumer/producer versioning, so that both applications are always released at the same version and at the same point in time. This strategy is enormously detrimental to Continuous Delivery as it inflates batch size and cycle time, with larger change sets per release resulting in an increased transaction cost, an increased risk of release failure, and an increased potential for undesirable behaviours.

Producer Consumer Versions

For example, when a feature is in development and our counterpart application is unchanged it must still be released simultaneously. This overproduction of application artifacts increases the amount of inventory waste in our value stream.

Wasteful Versions

Alternatively, when a feature is in development and our counterpart application is also in development, the release of our feature will be blocked until the counterpart is ready. This delays customer feedback and increases our holding costs, which could have a considerable economic impact if our new feature is expected to drive revenue growth.

Blocked Versions

The solution to this antipattern is to understand that an API is a contract not an object, and document-centric messaging is consequently a far more effective method of continuously delivering distributed applications. By communicating context-neutral documents between consumer and producer, we eliminate shared code artifacts and allow our applications to be released independently.

While document-centric messaging reduces the risk of runtime incompatibilities, a new producer version could still introduce an API change that would adversely affect one or more consumers. We can protect consumer applications by implementing the Tolerant Reader pattern and leniently parsing a minimal amount of information from the API, but the producer remains unaware of consumer usage patterns and as a result any incompatibility will remain undetected until integration testing at the earliest.

A more holistic approach is the use of Consumer Driven Contracts, where each consumer supplies the producer with a testable specification defining its expectations of a conversation. Each contract self-documents consumer/producer interactions and can be plugged into the producer commit build to assert it remains unaffected by different producer versions. When a change in the producer codebase introduces an API incompatibility, it can be identified and assessed for consumer impact before the new producer version is even created.

By using document-centric messaging and Consumer Driven Contracts, we can continuously deliver distributed applications with a low batch size and a correspondingly low cycle time. The impact of architectural decisions upon Continuous Delivery should not be under-estimated.
