Version Control Strategies

A taxonomy of version control strategies for and against Continuous Integration

This series of articles describes a taxonomy for different types of Feature Branching – developers working on branches in isolation from trunk – and how Continuous Integration is impacted by Feature Branching variants.

  1. Organisation antipattern: Release Feature Branching – the what, why, and how of long-lived feature branches
  2. Organisation pattern: Trunk Based Development – the what, why, and how of trunk development
  3. Organisation antipattern: Integration Feature Branching – the what, why, and how of long-lived integration branches
  4. Organisation antipattern: Build Feature Branching – the what, why, and how of short-lived feature branches

Organisation pattern: Trunk Based Development Branching

Trunk Based Development supports Optimistic and Pessimistic Release Branching

Trunk Based Development is a style of software development in which all developers commit their changes to a single shared trunk in source control, and every commit yields a production-ready build. It is a prerequisite for Continuous Delivery as it ensures that all code is continuously integrated into a single workstream, that developers always work against the latest code, and that merge/integration pain is minimised. Trunk Based Development is compatible with a Release Branching strategy of short-lived release branches that are used for post-development defect fixes. That strategy might be optimistic and defer branch creation until a defect occurs, or be pessimistic and always create a release branch.

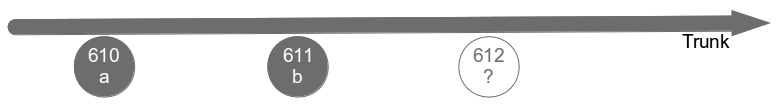

For example, consider an application developed using Trunk Based Development. The most recent commits to trunk were source revisions a and b which yielded application versions 610 and 611 respectively, and version 610 is intended to be the next production release.

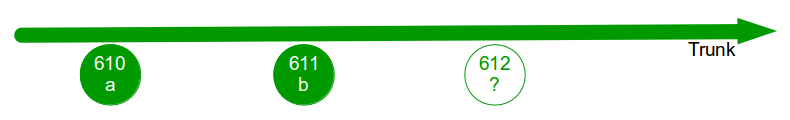

Trunk Based Development Branching - Optimistic Release Branching

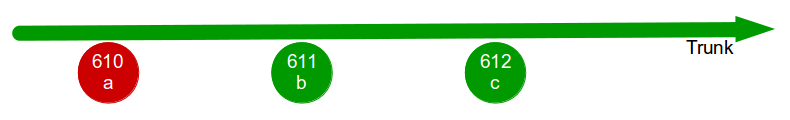

With Optimistic Release Branching, the release of version 610 is immediate as there is no upfront branching. If a defect is subsequently found then a decision must be made where to commit the fix, as trunk has progressed since 610 from a to b. If the risk of pulling forward from a to b is acceptable then the simple solution is to commit the fix to trunk as c, and consequently release version 612.

Trunk Based Development Branching - Optimistic Release Branching Low Risk Defect

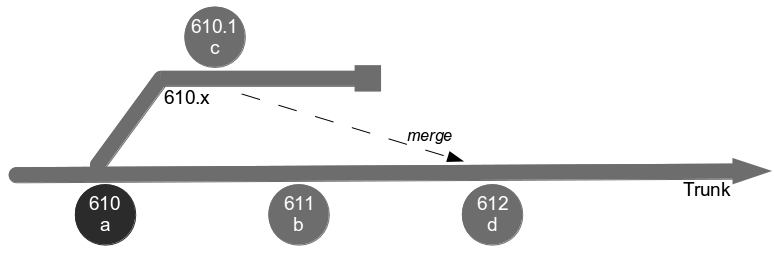

However, if the risk of pulling forward from a to b is unacceptable then a 610.x release branch is created from a, with the fix committed to the branch as c and released as version 610.1. That fix is then merged back into trunk as d to produce the next release candidate 612, and the 610.x branch is earmarked for termination.

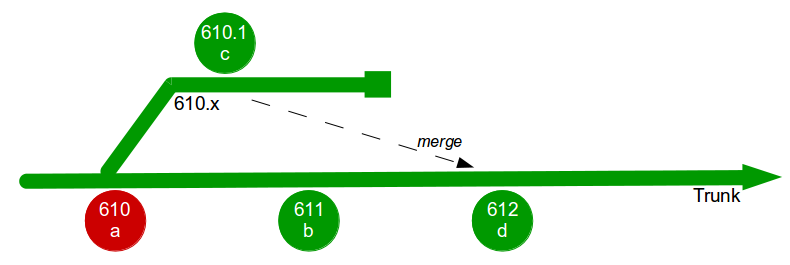

Trunk Based Development Branching - Optimistic Release Branching High Risk Defect

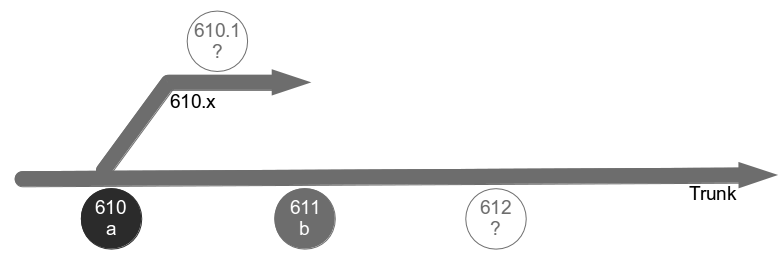

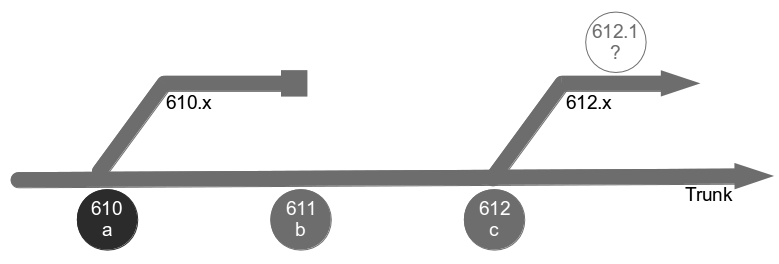

With Pessimistic Release Branching, the release of version 610 is accompanied by the upfront creation of a 610.x release branch in anticipation of defect(s). If a defect is found in version 610 then as with Optimistic Branching a decision must be made as to where the defect fix should be committed. If the risk of pulling forward from a to b is deemed insignificant then trunk can be pulled forward from a to b and the fix committed to trunk as c for release as version 612. The 610.x branch is therefore terminated without ever being used.

Trunk Based Development Branching - Pessimistic Release Branching Low Risk Defect

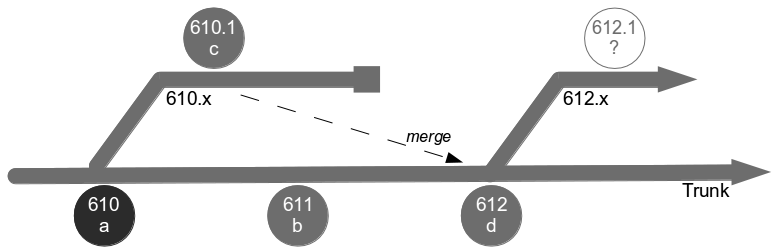

If on the other hand the risk is deemed significant then the fix is committed to the 610.x branch as c and released as version 610.1. The fix is merged back into trunk as d and version 612, which will also receive its own branch upon release.

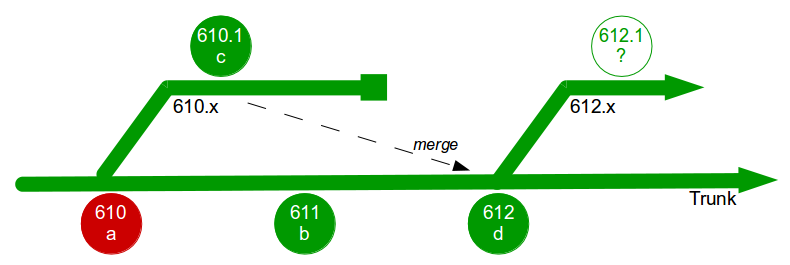

Trunk Based Development Branching - Pessimistic Release Branching High Risk Defect

The choice between Optimistic Branching and Pessimistic Branching for Trunk Based Development is dependent upon product quality and lead times. If product quality is poor and lead times are long, then the upfront cost of Pessimistic Branching may be justifiable. Alternatively, if post-development defects are rare and production releases are frequent then Optimistic Branching may be preferable.

Application pattern: Vertical Divide and Conquer

Divide and conquer vertically to reduce cost of change

Application architecture is an oft-overlooked aspect of Continuous Delivery, and an application that encapsulates orthogonal business capabilities is a direct impediment to our stated aim of rapidly releasing small changesets to improve our cycle time. How can we better align technical capabilities with business capabilities, and consequently improve our release cadence?

For example, consider a Fruit Basket application that contains unrelated Apples and Bananas business capabilities, both of which rely upon a messaging service to integrate with a third-party endpoint.

Divide Conquer Monolith

This is clearly an ineffective architecture as it encapsulates unrelated business capabilities with different rates of change, violating Bob Martin’s Single Responsibility Principle and Kevlin Henney’s assertion that “an effective architecture is one that generally reduces the significance of design decisions“. A Fruit Basket release that contains new Apples functionality must also include the unchanged Bananas functionality, creating an inflated changeset that increases transaction costs and the probability of failure.

We can reduce the cost of change and enable Continuous Delivery by using Divide and Conquer to split Fruit Basket into independent applications, but it is important to assess the merits of different strategies. Horizontal Divide and Conquer favours a division of technical capabilities, and would result in separate Fruit Basket and Messaging applications.

Horizontal Divide Conquer

While Horizontal Divide and Conquer allows for independent releases of Fruit Basket and Messaging, it ignores the fact that the variation between individual business capabilities will be greater than the variation between business and technical capabilities. Over time there will be far more orthogonal Apples/Bananas requirements than orthogonal Fruit Basket/Messaging requirements, with each Fruit Basket release still a bloated changeset – and when an Apples or Bananas requirement needs a Messaging change, the changeset will grow even larger.

In order to have a significant impact upon cycle time, we must value the decoupling of business capabilities over the deduplication of technical capabilities and adopt a Vertical Divide and Conquer strategy. Vertical Divide and Conquer favours a division of business capabilities, and would result in separate Apples and Bananas applications.

Vertical Divide Conquer

By creating independent Apples and Bananas applications we align our technical capabilities with our business capabilities, and respect the different rates of change in the Apples and Bananas business domains. This will ensure each Apples and Bananas release consists of a minimal changeset, unlocking batch size reduction benefits such as improved transaction costs, improved risk, and improved cycle time.

If we identify Messaging duplication as an issue after Apple and Bananas have been decoupled, we can further improve our architecture by extracting Messaging as an independently versioned library. This will further shrink Apples and Bananas changesets, and the introduction of a Messaging Published Interface will make it easier to reason about responsibilities and collaborators.

Optimise Vertical Divide Conquer

The corollary to Vertical Divide and Conquer is Conway’s Law, which tells us for our vertically aligned business and technical capabilities to be truly successful we must also re-structure our organisation so that our development teams are vertically aligned with singular responsibility for specific business capabilities.

Application pattern: Verify Branch By Abstraction

Verify Branch By Abstraction extends Branch By Abstraction to reduce risk

A fundamental requirement of Continuous Delivery is that the codebase must always be in a releasable state, with each successful pipeline commit resulting in an application artifact ready for production use. This means major changes to application architecture are a significant challenge – how can an architecture evolve without impacting the flow of customer value or increasing the risk of production failure?

In the Continuous Delivery book, Dave Farley and Jez Humble strongly advocate Trunk-Based Development and recommend the Branch By Abstraction pattern by Paul Hammant for major architectural changes. Branch By Abstraction refers to the creation of an abstraction layer between the desired changes and the remainder of the application, enabling evolutionary design of the application architecture while preserving the cadence of value delivery.

For example, consider an application consuming a legacy component that we wish to replace with a newer alternative. The scope of this change spans multiple releases, and has the potential to impede the development of other business features.

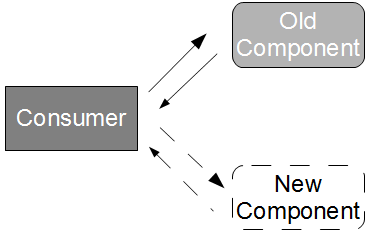

Verify Branch by Abstraction 1

To apply Branch By Abstraction we model an abstraction layer in front of the old and new component entry points, and delegate to the old component at build-time while the new component is under development. When development is complete, we release an application artifact that delegates to the new component and delete the old component.

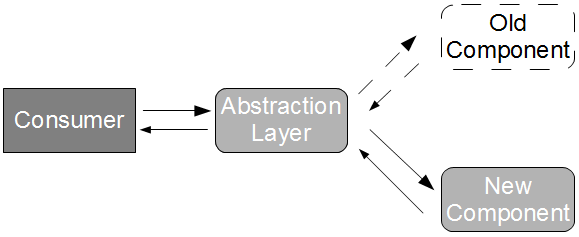

Verify Branch by Abstraction 2

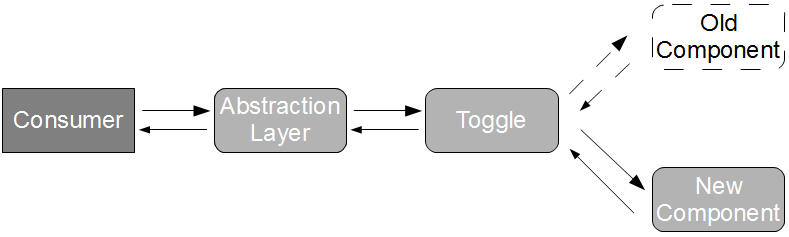

While this form of Branch By Abstraction successfully decouples design lead time from release lead time, there is still an increased risk of production failure when we switch to the new component. Dave and Jez have shown that “shipping semi-complete functionality along with the rest of your application is a good practice because it means you’re always integrating and testing“, but our new component could still cause a production failure. This can be alleviated by introducing a run-time configuration toggle behind the abstraction layer, so that for an agreed period of time we can dynamically revert to the old component in the event of a failure.

Verify Branch by Abstraction 3

Enhancing Branch By Abstraction with a run-time configuration toggle reduces the cost of failure when switching to the new component, but there remains a heightened probability of failure – although our abstraction layer compels the same behaviour, it cannot guarantee the same implementation. This can be ensured by applying Verify Branch By Abstraction, in which our run-time configuration toggle delegates to a verifying implementation that calls both components with the same inputs and fails fast if they do not produce the same output. This reduces the feedback loop for old and new component incompatibilities, and increases confidence in our evolving architecture.

Verify Branch by Abstraction 4

The value of Branch By Abstraction has been summarised by Jez as “your code is working at all times throughout the re-structuring, enabling continuous delivery“, and Verify Branch By Abstraction is an extension that provides risk mitigation. As with its parent pattern, it requires a substantial investment from the development team to accept the increased maintenance costs associated with managing multiple technologies for a period of time, but the preservation of release cadence and reduced risk means that Verify Branch By Abstraction is a valuable Trunk Based Development strategy.
